Coaxial Connector

microSMP interface connectors

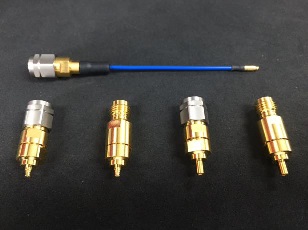

image: microSMP Connector
Product Outline

microSMP connector is 30% smaller compare to SMPM and which provides electric connection up to 65GHz. With its extra tiny size and push on mating style, this connector can be used for high density and high speed interconnection.

Technical Characteristics
Electrical Characteristics
Characteristic impedance 50Ω
Frequency range DC~65GHz
Voltage rating 80Vrms
VSWR (typical) ≦1.5 at 65GHz
Insulation resistance 3500MΩ
Dielectric withstanding voltage 250Vrms
Body(male) Brass/Kovar/Beryllium copper
Body(female) Beryllium copper
Center contact(male) Beryllium copper
Center contact(female) Beryllium copper
Insulator PTFE/Glass
Body Gold with Nickel under plate
Center contact Gold with Nickel under plate

See lists of microSMP Connectors.
